7052PH

Phantom Powered Measurement Microphone System

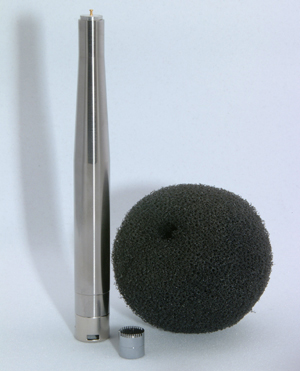

7052PH Phantom Powered Measurement Microphone System

7052PH IEC61094-4 compliant

The 7052PH IEC61094-4 compliant phantom powered measurement microphone system offers a cost effective solution to acoustic measurements from phantom powered sources. Designed to work with from 48 to 18 Vdc Phantom Power, the 7052PH features the 7052H. Its rugged Titanium diaphragm provides excellent longterm stability and temperature performance. The companion 4048 ACOtron™ preamp offers both low noise and a wide dynamic range. A WS1 3" Windscreen is included.

7052PH SPECIFICATIONS:  Download 7052PH Spec Sheet in .PDF

7052H 1/2 Inch Electret Free Field Microphone

  • IEC61094-4 compliant
  • Frequency Response: <3 Hz to > 25kHz typ.(capsule)
  • Sensitivity: 25 mV/Pa (-35 dBV/Pa)typ.
  • Dynamic Range (capsule) 1% THD: <20dBA-150dBSPL (Capsule)
  • Diaphragm Material: Titanium
  • TempCo: 0.01 dB/C
  • Mounting Thread: 11.7 mm 60UNS2


4048 SPECIFICATIONS:

4048 ACOtronTM 1/2 Inch Phantom Preamp

  • Frequency Response @ 22 pF: 5Hz to 200kHz (-2dB)
  • Loss @ 22 pF: 1.5 dB typ.
  • Noise Floor @ 22 pF: <1.5 uV typ. about 16dBA w/7052E
  • Output Performance 48 to 24 V Phantom: 1kHz - 14 Vp-p (5 Vrms) into a 5000 pF load <1%THD
  • Power Suppy Sensitivity: <0.1 dB
  • Mic Mounting Thread: 11.7 mm 60UNS2
  • Power/Output Connector: XLR 3 pin -male


ACCESSORIES:

OPTIONS:

HiSPL: Contact factory
